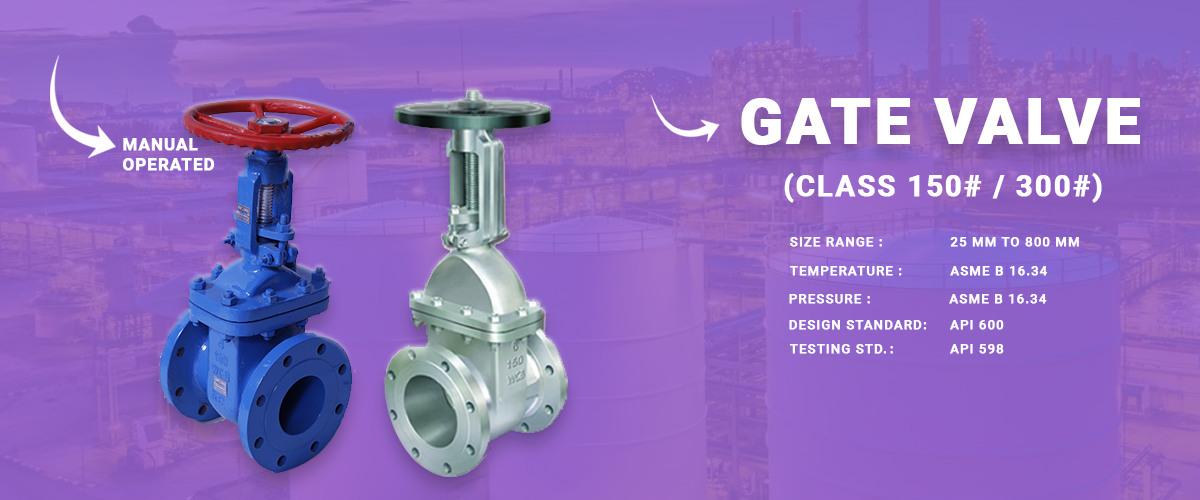

The Gate Valve (150# / 300#) is a widely used valve type designed primarily for on-off control of fluid flow. Known for its simplicity, durability, and minimal flow resistance, the gate valve is used in a wide range of industrial applications, including water treatment, oil and gas, and chemical processing. This valve operates by raising or lowering a flat or wedge-shaped gate to control the flow of liquids and gases.
The Gate Valve (150# / 300#) is a versatile and reliable solution for industries requiring effective flow control and shut-off capabilities. Its robust design, minimal pressure drop, and suitability for various applications make it an essential component in fluid control systems. Whether in water treatment, oil and gas, or chemical processing, the gate valve provides efficient performance and long-lasting durability for a wide range of demanding industrial applications.
Straight-Through Flow Design : When fully open, the gate valve allows for unobstructed flow, resulting in minimal pressure drop and turbulence, making it ideal for applications where high flow efficiency is required.
Reliable Shut-Off : The gate valve provides a tight seal when fully closed, preventing leaks and ensuring reliable flow isolation. This feature makes it suitable for applications where complete flow stoppage is essential.
Versatile Material Options : Available in a variety of materials, including stainless steel, cast iron, brass, and carbon steel, gate valves can be customized to handle different types of fluids, from potable water to corrosive chemicals.
Wedge and Parallel Gate Options : The gate can be either a wedge-shaped or parallel design, with each type offering specific benefits. The wedge type provides a tighter seal, while the parallel gate is ideal for high-pressure applications.
Manual, Electric, or Pneumatic Actuation : Gate valves can be operated manually with a handwheel or outfitted with electric or pneumatic actuators for automated operation, offering flexibility in control options.
| Valve Details: | |
|---|---|
| Operation | Handwheel / Gear Operated |
| Size | 25 MM To 800 MM |
| Class | 150# / 300# |
| Body / Bonnet | ASTM A Gr. 216 WCB / CF8 / CF8M |
| Trims | 13% Cr. |
| Stem | SS 410 |
| End Connection | Flanged End To ASME B 16.5 150# / 300# RF |
| Design / Mfg. Std. | API 600 |
| Inspection & Testing Std. | API 598 |
| Face To Face | ASME B 16.10 |
Water Treatment : Used extensively in water treatment plants for controlling the flow of potable water, wastewater, and other fluids. Gate valves provide reliable operation in these systems, ensuring efficient flow management.
Oil and Gas Industry : Essential for controlling the flow of crude oil, natural gas, and other hydrocarbons in pipelines and processing facilities. The gate valve’s high-pressure capability and robust design make it ideal for the oil and gas sector.
Chemical Processing : Employed in chemical plants to manage the flow of corrosive or hazardous chemicals, gate valves are constructed from materials that resist chemical attack, ensuring safe operation.
Power Generation : Widely used in power plants to regulate water, steam, and other fluids necessary for power production, gate valves offer efficient flow control and reliable shut-off capabilities.
Mining and Mineral Processing : Ideal for handling abrasive slurries and materials in mining applications, the gate valve’s durability and tight sealing ability make it a dependable choice in these harsh environments.
The Forged Steel Gate Valve is a crucial component in various industrial applications, designed for efficient on-off control of fluid flow. Made from high-quality forged steel, these valves offer exceptional strength, durability, and resistance to high pressures and temperatures. Their robust construction makes them suitable for a wide range of demanding environments, including oil and gas, chemical processing, and power generation.
The Forged Steel Gate Valve is an excellent choice for industries requiring reliable and efficient flow control. With its robust construction, minimal pressure drop, and versatility in applications, this valve ensures optimal performance and safety in various demanding environments. Whether in oil and gas, chemical processing, or water treatment, the forged steel gate valve stands out as a dependable solution for managing fluid flow.
Forged Steel Construction : Manufactured from high-grade forged steel, these valves are designed to withstand extreme conditions, ensuring a longer lifespan and reduced risk of failure under high-pressure applications.
Gate Design : The gate mechanism provides a straight-through flow path, minimizing pressure drop and turbulence. When fully open, the valve offers unrestricted flow, making it suitable for applications requiring high flow rates.
Reliable Sealing Performance : The gate valve provides a tight seal when closed, preventing leakage and ensuring the safe handling of fluids. The resilient seating materials enhance sealing performance in both high-temperature and corrosive environments.
Various End Connections : Available with different end connections such as flanged, threaded, or butt-weld, the forged steel gate valve can be easily integrated into various piping systems, ensuring compatibility with existing infrastructure.
Robust Design for High Pressure and Temperature : Engineered to operate effectively in extreme conditions, these valves maintain their integrity under high pressure and temperature, making them ideal for demanding applications.
| Valve Details: | |
|---|---|
| Operation | Handwheel |
| Size | 15 MM To 50 MM |
| Class | 800# / 1500# / 2500# |
| Body / Bonnet | Forged Steel (A105 / F304 / F316) |
| trim | SS 410 |
| End Connection | Threaded / Socket Weld / Butt Weld Ends |
| Design std. | API 602 |
| testing std. | API 598 |
| pressure / temp. | Asme b 16.34 |
Oil and Gas Industry : Widely used in oil and gas pipelines for controlling the flow of crude oil, natural gas, and other hydrocarbons, ensuring safe and efficient operations.
Chemical Processing : The forged steel gate valve is essential for managing the flow of corrosive and hazardous chemicals in processing plants, providing reliable operation in demanding conditions.
Power Generation : Utilized in power plants for regulating water, steam, and other fluids, the valve ensures efficient control of processes critical to energy generation.
Water and Wastewater Treatment : Employed in water treatment facilities to manage the flow of water and sludge, the valve helps maintain efficient and reliable operations in various stages of water purification.
Mining and Mineral Processing : Ideal for controlling the flow of slurries and abrasive materials in mining applications, the robust construction of forged steel gate valves ensures durability in harsh environments.
A CI Sluice Gate Valve is a type of valve commonly used for controlling the flow of water or other liquids in large pipelines, primarily in water treatment, irrigation, and wastewater management systems. These valves are essential in regulating the flow in open channels, dams, or reservoirs. The design of the sluice gate valve typically includes a flat or wedge-shaped gate that is raised or lowered to control the flow of fluids.
| Valve Details: | |
|---|---|
| Body | Cast Iron / Ductile Iron |
| Bonnet/Cap | Cast Iron / Ductile Iron |
| Stuffing Box | Cast Iron / Ductile Iron |
| Gland | Cast Iron / Ductile Iron |
| Wedge | Cast Iron / Ductile Iron |
| Wedge & Body Ring | 13% CR. |
| Drilling | As Per IS: 1538 |
| Pressure Rating | PN 1.6 |
Water Treatment : Used extensively in water treatment plants for controlling the flow of potable water, wastewater, and other fluids. Gate valves provide reliable operation in these systems, ensuring efficient flow management.
Oil and Gas Industry : Essential for controlling the flow of crude oil, natural gas, and other hydrocarbons in pipelines and processing facilities. The gate valve’s high-pressure capability and robust design make it ideal for the oil and gas sector.
Chemical Processing : Employed in chemical plants to manage the flow of corrosive or hazardous chemicals, gate valves are constructed from materials that resist chemical attack, ensuring safe operation.
Power Generation : Widely used in power plants to regulate water, steam, and other fluids necessary for power production, gate valves offer efficient flow control and reliable shut-off capabilities.
Mining and Mineral Processing : Ideal for handling abrasive slurries and materials in mining applications, the gate valve’s durability and tight sealing ability make it a dependable choice in these harsh environments.
